Importing a Team Project

The Switch Project menu in the editor topbar has two sections: a lesson catalog for structured exercises, and a Team Import field for loading a real team project from GitHub. This page covers the team import flow.

If you are looking for how lessons work, see How Lessons Work.

What a team import is for

Lessons are scratch work: they are gitless, disposable, and intended for free experimentation. Team import is different: it clones a real public GitHub repository into the student's workspace and keeps the .git directory and the HTTPS origin. The student can commit and push from the VS Code terminal exactly as they would on their own machine.

Use team import when students are working on actual robot code that needs to be committed: build season projects, competition code reviews, or any time the work needs to be saved in version control.

How to do an import

1. Open the Switch Project menu from the editor topbar.
2. In the Team Import field, paste the public GitHub URL of the repository root, for example https://github.com/frc1234/robot-2026.
3. Confirm the discard prompt. The current workspace contents are deleted before the import begins. Students should push any work they want to keep before switching.

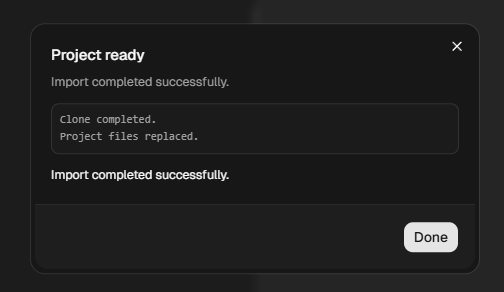

4. A progress panel streams the clone and validation steps. When it finishes, the editor reopens on the imported project.

What URL formats are accepted

Only public GitHub repository root URLs in HTTPS format are accepted:

https://github.com/<owner>/<repo>
https://github.com/<owner>/<repo>.git

The following are rejected with an error message:

• SSH URLs (starting with git@)
• URLs pointing to a branch, tag, subdirectory, or file within a repo (for example .../tree/main/src)
• URLs for hosts other than github.com
• Private repositories (the clone runs without credentials)

What the import does

When a valid URL is submitted, the control plane:

1. Clones the repository inside the student's container using git clone --no-single-branch --depth 1. This gives the student a shallow copy with all remote branches available as origin/*, but no full commit history.
2. Verifies that build.gradle exists at the project root. Repositories without a build.gradle are rejected; team import is intended for Gradle/WPILib robot projects.
3. Checks that the cloned project is within the 200 MB size limit.
4. Replaces /workspace/project with the cloned project, keeping .git and the origin remote intact.
5. Clears the editor's workspace cache so VS Code re-opens the new folder cleanly.

The workspace is then treated as a robot project. The Driver Station and the AdvantageScope/PathPlanner tabs are available, matching a robot lesson.

Pushing and pulling after import

Because .git and the origin remote are kept, students can use Git normally from the VS Code integrated terminal. The container has no stored credentials, so students need to authenticate themselves before pushing. Two common approaches:

• Personal access token: configure Git's credential helper to store a token, then push as normal. GitHub's documentation covers how to create a fine-grained token with repository write access.
• Switch the remote to SSH: replace the HTTPS origin with an SSH URL (git remote set-url origin git@github.com:<owner>/<repo>.git) and add an SSH key. The container has ssh-keygen available.

The server does not store, inject, or manage any Git credentials.

Running an imported project

Imported projects run through the same Driver Station flow as robot lessons: click Start to build and start the simulation. When robot code and communications are ready, choose a mode and click Enable. Use AdvantageScope for telemetry or PathPlanner for the project's paths and autos.

No changes to build.gradle are required, even if the project calls wpi.sim.addGui() or wpi.sim.addDriverstation(). At run time, a Gradle init script is applied non-destructively that:

• Removes the simulation GUI and Driver Station socket HAL extensions (unavailable in a headless container).
• Enables the HALSim WebSocket server the web Driver Station needs, if it is not already present.

The student's build.gradle is untouched; the init script operates at the Gradle API level and is invisible in the editor.

Constraints and limits

Constraint	Value
Allowed hosts	github.com only
Repository visibility	Public only
URL shape	Repository root; no branch or path controls
Must contain	build.gradle at the root
Size limit	200 MB (checked after clone)
Rate limit	6 imports per user per hour
Clone timeout	60 seconds

Switching away discards the workspace

Switching to a lesson, switching to a different import, or re-importing replaces everything in the workspace. There are no server-side backups of imported project work. Students should push their commits to GitHub before switching; that is the intended safety net. The discard confirmation prompt is there as a reminder.

If a student accidentally switches away without pushing, the work is gone from the server. Recovery depends entirely on whether they had committed and pushed to the remote.

See How Lessons Work for the same caveat from the lesson side.
